In-Process Deburring of Cross-Drilled Holes
ORBITOOL®
Kesişen Deliklerde Çapak Alma
Orbitool®
It is the only deburring tool that is capable of in-process deburring of cross-drilled holes by removing burrs specifically from the intersection of the crossholes.
Süleyman Görmüş Otomotiv is the Sole Authorised Distributor in Turkey for JW Done Orbitool®
Orbitool® Deburring Tools
Ideal tools for eliminating back-burrs at intersection areas in straight, angled, or oval cross-hole applications.
* As well as automated processes, Orbitool cutters can also be used manually. Because of its unique design, the results obtainable with ORBITOOL cutters will be superior to other hand deburring methods. As with other manual methods though, the results still depend on the skill and attention of the operator.

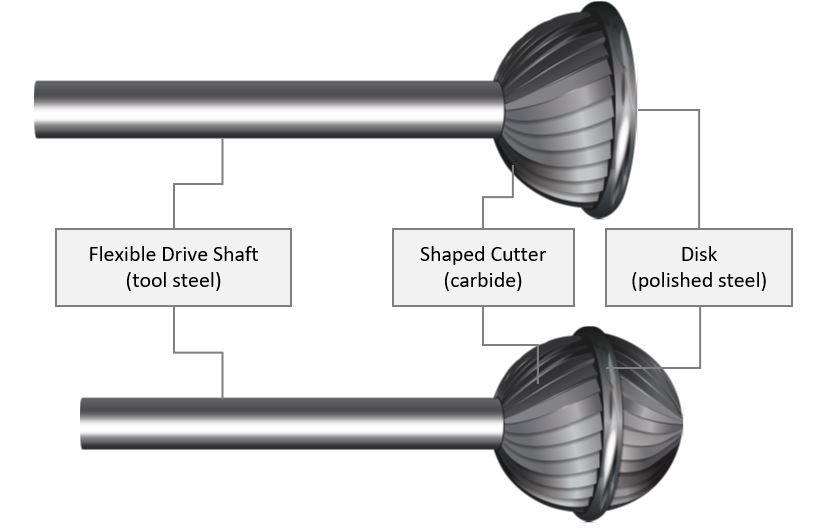

* Orbitool comes in two configurations : Single Hemisphere and Double Hemisphere. Tools are produced in 7 different standard sizes varying in between 1.88mm to 9.52mm. Our special design ‘Micro Tool’ is produced only in single hemisphere option and surprisingly reaches downsizes with its 1.14mm protective disc diameter.

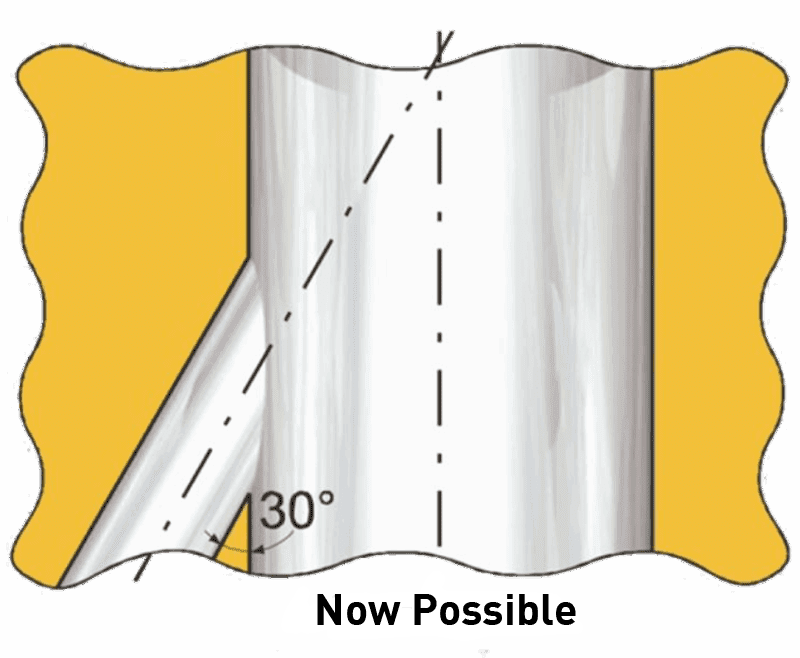

* In cross-hole applications, it is not required that the smaller hole intersects the main bore only vertically (90º). Orbitool® helps you to access back-burrs at intersection points with acute angles down to 60º, 45º, and even 30º.
The patented protective disk on the tool prevents the burr from damaging the part.
As ORBITOOL spins, the disk rides on the surface of the part,
until it falls over the edge where the burr is located.
Tool Sizes
Our deburring cutters are available in 7 different sizes ranging from 1.88mm to 9.52mm.
Precision Deburring
Helical interpolation ability lets tools achieve results far beyond their size.
No Material Restrictions
Capable of deburring on all materials including steel, cast iron, aluminum, etc.
Move tool inside the hole to a depth close to the intersection.
Move tool to the side of the hole until the axis of the tool is located at the diameter of interpolation.
Begin rotation of tool. Begin helical interpolation. The direction of Interpolation and tool rotation must coincide (both clockwise)
Tool moves to the intersection, cutter meets the corner and deburring starts.
Advance tool to the center of the second hole. Stop rotation and interpolation of the tool.
Move tool to the center of the bore.
Single Hemisphere Cutter Orbitool®
| Part Number Cutter Dimensions mm/inch | Approx. Min. Hole Dia. A – varies by intersection angle | Ø B Disc Diameter mm | C Head Height mm | Ø D Shank Diameter mm | E Shank Length mm | ||
|---|---|---|---|---|---|---|---|
| 90° mm | 60° mm | 45° mm | |||||
| SGO-074S 1.88mm/0.074“ | 2.00 | 1.88 | 2.03 | 0.76 | 63.5 | ||
| SGO-238S 2.38mm/3/32“ | 3.18 | 4.52 | 6.15 | 2.69 | 2.03 | 0.76 | 63.5 |
| SGO-318S 3.18mm/1/8“ | 4.37 | 6.02 | 8.18 | 3.58 | 2.39 | 1.14 | 101.6 |
| SGO-397S 3.97mm/5/32“ | 5.46 | 7.52 | 10.24 | 4.42 | 2.74 | 1.55 | 101.6 |
| SGO-476S 4.77mm/3/16“ | 6.55 | 9.04 | 12.27 | 5.18 | 3.15 | 1.55 | 101.6 |
| SGO-635S 6.35mm/1/4“ | 8.74 | 12.01 | 16.36 | 6.88 | 3.84 | 2.39 | 152.4 |
| SGO-953S 9.58/3/8“ | 13.13 | 18.03 | 24.54 | 10.31 | 5.51 | 2.39 | 152.4 |
Double Hemisphere Cutter Orbitool®
| Part Number Cutter Dimensions mm/inch | Approx. Min. Hole Dia. A – varies by intersection angle | Ø B Disc Diameter mm | C Head Height mm | Ø D Shank Diameter mm | E Shank Length mm | ||
|---|---|---|---|---|---|---|---|
| 90° mm | 60° mm | 45° mm | |||||
| SGO-074D 1.88mm/0.074" | 2.00 | 1.88 | 3.18 | 0.76 | 63.5 | ||
| SGO-238D 2.38mm/3/32" | 3.18 | 4.52 | 6.15 | 2.69 | 3.18 | 0.76 | 63.5 |
| SGO-318D 3.18mm/1/8" | 4.37 | 6.02 | 8.18 | 3.58 | 3.86 | 1.14 | 101.6 |
| SGO-397D 3.97mm/5/32" | 5.46 | 7.52 | 10.24 | 4.42 | 4.55 | 1.55 | 101.6 |
| SGO-476D 4.77mm/3/16" | 6.55 | 9.04 | 12.27 | 5.18 | 5.41 | 1.55 | 101.6 |
| SGO-635D 6.35mm/1/4" | 8.74 | 12.01 | 16.36 | 6.88 | 6.78 | 2.39 | 152.4 |
| SGO-953D 9.58 / 3/8" | 13.13 | 18.03 | 24.54 | 10.31 | 10.11 | 2.39 | 152.4 |
New 18000 series Micro-Tools
| Size, Nominal | Cutter P/N Series | Ø A min (approx) varies with angle of intersection, mm | Ø B disc, mm | C head height, mm | Ø D shaft, mm | E as supplied, mm | F length, mm | G clamping end, mm | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 90° | 60° | 45° | ||||||||
| 0.045 | 18000 | 1.3 *please contact for specific application assistance | 1.14 | 0.813 | 0.381 | 12.5 | 55 | 3.0 | ||
| 0.045 | 18002 | 1.3 *please contact for specific application assistance | 1.14 | 0.813 | 0.381 | 19.0 | 55 | 3.0 | ||
| 0.045 | 18001 | 1.3 *please contact for specific application assistance | 1.14 | 0.813 | 0.381 | 25.0 | 55 | 3.0 | ||
Süleyman Görmüş Otomotiv,
is the Sole Authorised Distributor in Turkey for JW Done Orbitool® specialty deburring tools.
